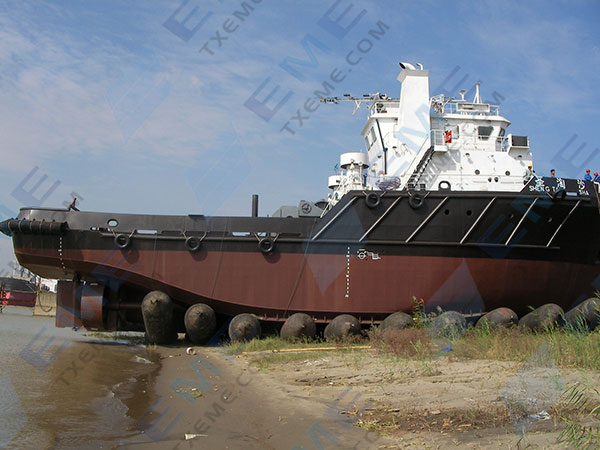

Title：Our company also engaged in saling and agenting tugboat etc    Browse times：[ 891 ]
Body：
Principal Particulars

Main Dimensions

Length Overall          ：   36.00m
Length WL                ：  31.70m
Beam Moulded             ：  10.97m
Depth Moulded            ：   5.00m
Draft Design         ：   4.20m

Accommodation

2×Single Cabin      ：   2人    2men
2×2-Men Cabin      ：   4人    4men
2×4-Men Cabin      ：   8人    8men
Total                            14人  14men

Tank  Capacity (approx.)

Freshwater            ：  appro 100 M3
Fuel oil                   ：  appro 393 M3
Lub.oil                    ：   1.0 M3

Main Engines         ：   2 x Cummins KTA50－M2, 1600BHP/1800rpm
To be joined to gear box WAF 663(Reintjies), ratio 5.95:1


Performance

Free speed         ：12knots at sail condition
Bollard Pull         ：   more than 40T at 100% MCR and continuity pulling
